BANTAM TYPE JACKS
PHONE: 773 792-2700
88
JACKS AND PLUGS
?
* Please visit the product pages on our website for the most up-to-date product information
TT-JAX (.173") TELEPHONE JACKS BANTAM TYPE
?
?
SPECIFICATIONS
Frame: Plated (steel or zinc diecast).
Stack Screws: Steel plated.
Bushing: Plated (brass or steel).
Tip and Ring Springs: Copper alloy.
Contact Spring: Copper alloy.
Contacts: Welded crossbar palladium. Other alloys in
various sizes available on special order.
Insulation: Rigid plastic with plastic tubing through
stack assembly.
MOUNTING HARDWARE
Series TT30: #3-48 x 1/4"; mounting screws, P10834,
can be ordered separately.
Series TT30FM: Supplied with one #3-48 x 1?4" fil.
head machine screw, steel-plated.
Series TT600: Supplied with one P1975, nickel-plated cop-
per alloy locknut, and one S3997, steel, nickel-plated wash-
er.

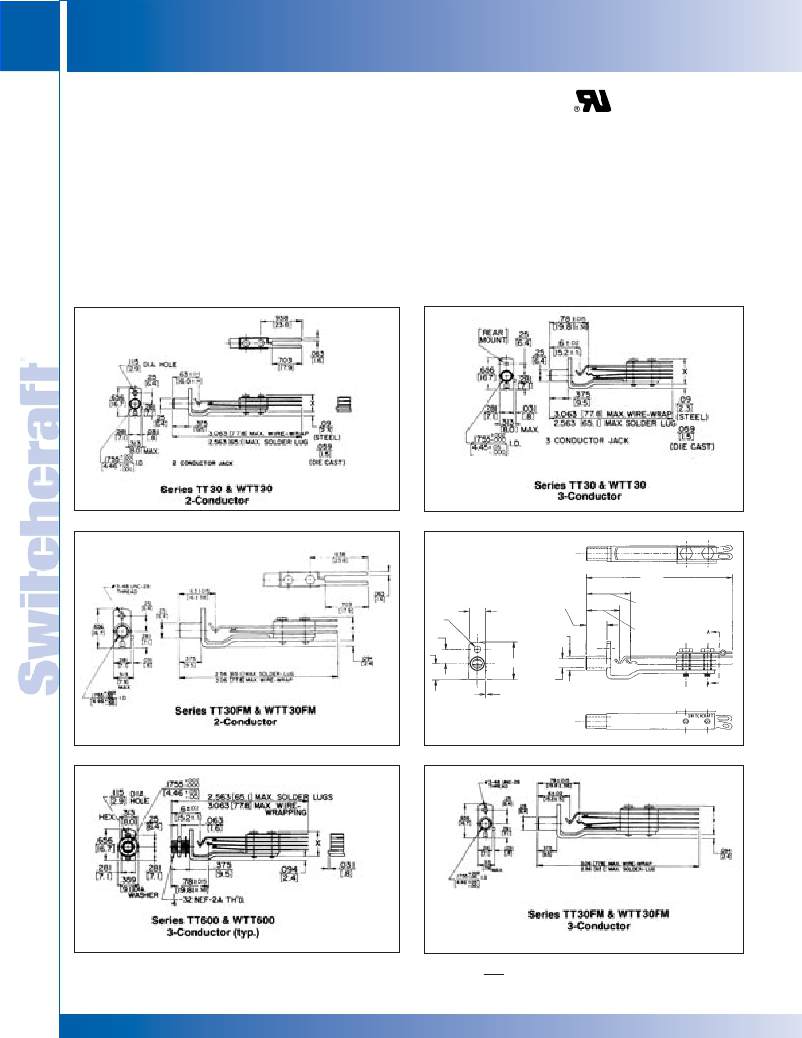

NOTE: Dimensional drawings show panels with steel frame
jacks. Overall dimensions for steel or die-cast frame jacks
are the same, except as noted.
2-17/32
[64.3]
0.375
REF
B0.115
[2.9]
REF
0.281
[7.1]
[9.5]
REF
0.780 5.015
[19.8]
REF
REF
0.250
[6.4]
REF
0.650
[16.51]
REF
B0.251
[6.4]
REF
B0.176
0.590 5.015
[14.9]
REF
0.279
[7.1]
0.035
[.79]
REF
[4.46]
REF
REF
Series TT32B
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
